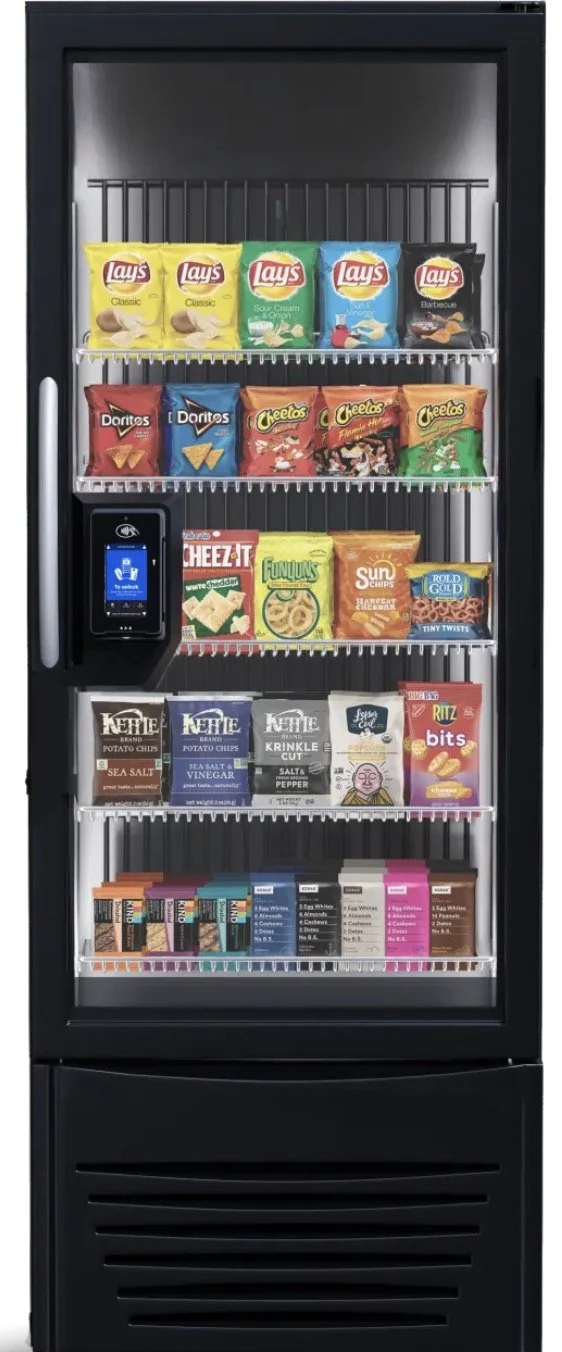

PicoAmbient Vision

• Height: 72 inches (6 feet)

• Width: 39 inches (3.25 feet)

• Depth: 31 inches (2.58 feet)

• Weight: Approximately 520 lbs (empty)

• Floor Space required: 40" x 36" area to allow for the door to swing open during restocking.

• Power: Standard 110/120V outlet. (The unit is highly energy-efficient since it is non-refrigerated).

• Connectivity: Uses an internal 4G/5G cellular gateway

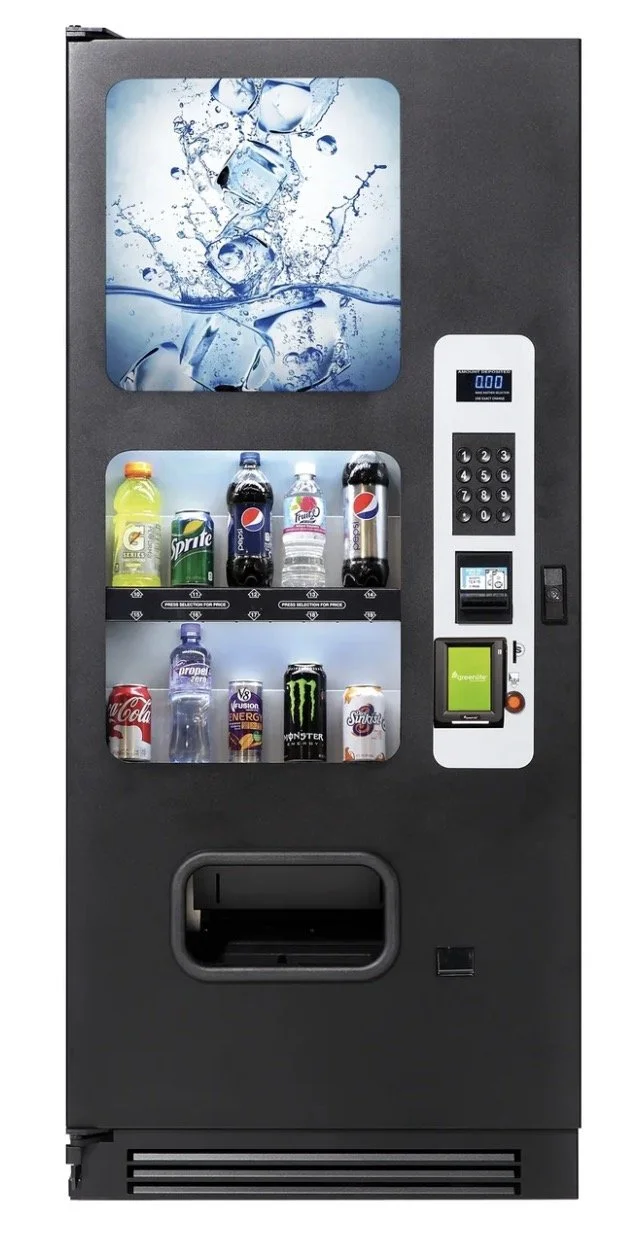

10 Selection Cold Drink Vending Machine

• Height: 72 inches (6 feet)

• Width: 31.25 to 31.75 inches (approx. 2.6 feet)

• Depth: 33.25 to 36.5 inches (approx. 3 feet)

• Weight: 671 lbs (empty). Note: This is significantly heavier than the AI cabinets because of the refrigeration system and insulation.

• Cans: Up to 500 (12 oz)

• Bottles: Up to 240 (20 oz or 16.9 oz water)

• Floor Space Required: 32" x 40" area.

• Power: Standard 115V/60Hz outlet.

• Amperage: Pulls between 2.0 and 7.0 Amps depending on the model and whether it has a heated glass feature.

• Energy Use: Modern units are Energy Star rated, consuming roughly 3.6 kWh/day.

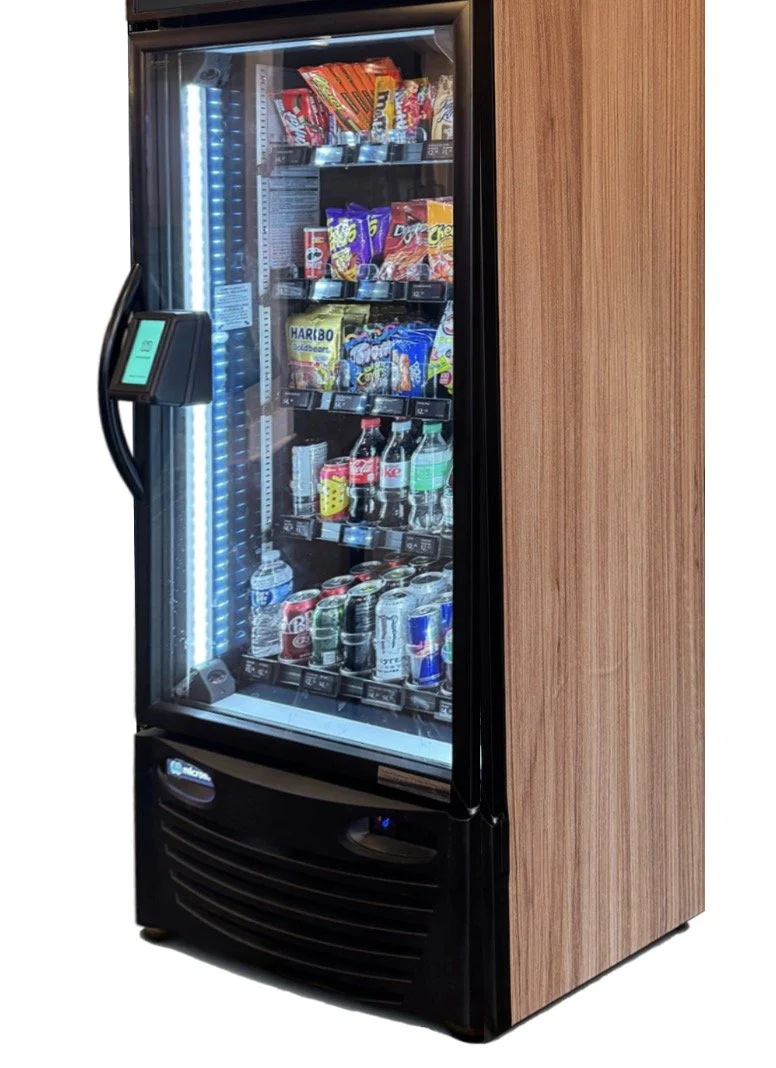

Micromart™ Smart-Fridge

• Dimensions: 30”W x 34.5”D x 79”H

• Weight: 350 lbs

• Technology: 3x high-speed AI cameras with anti-fog lenses for object recognition.

• Digital Display: 1920 x 540px HD

• Capacity: ~23 cubic feet, holding anywhere from 280 to 750 items depending on product size.

• Shelving: 5x food-grade adjustable steel racks with ePaper digital price tags.

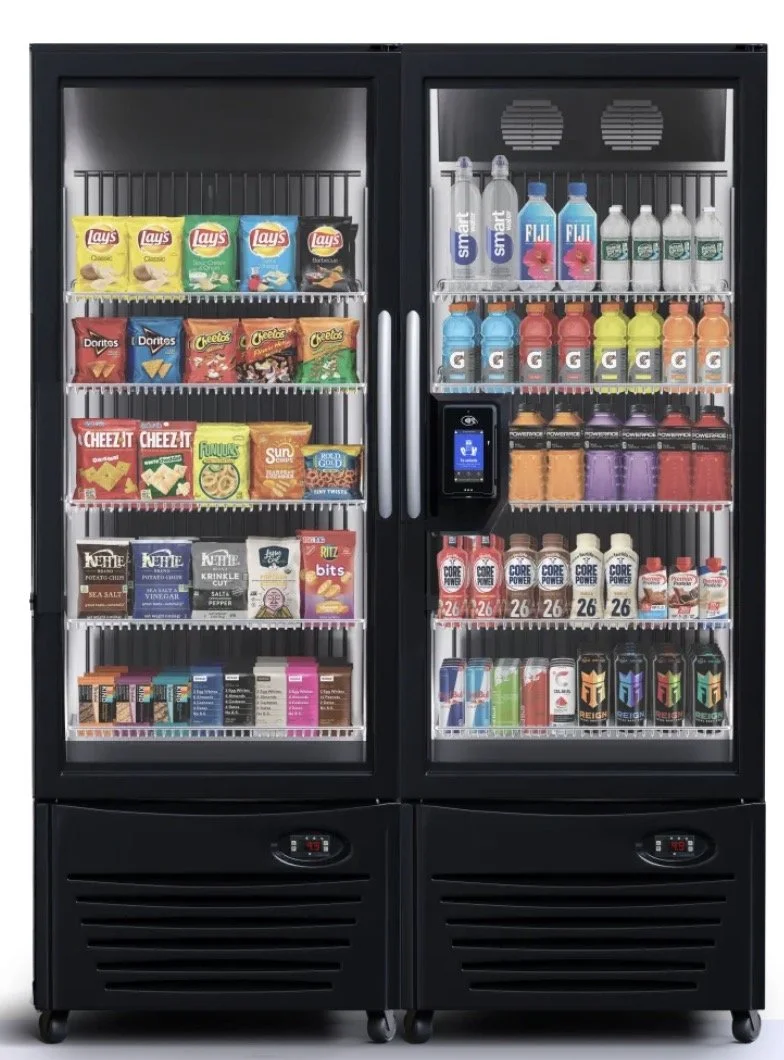

PicoCooler Vision + Ambient Cabinet

• Height: 78.75 inches (approx. 6.5 feet). Note: The Cooler is slightly taller than the standalone Ambient unit to accommodate the refrigeration compressor.

• Total Width:60 to 67 inches (5 to 5.6 feet).

  • PicoCooler Vision: 30 inches wide.

  • Standard Ambient Cabinet: 30 inches wide.

  • Wide Ambient Cabinet: 37 inches wide.

• Depth: 32.6 inches.

• Weight (Combined): ~860 lbs (empty).

  • Cooler: ~340 lbs.

  • Ambient Cabinet: ~520 lbs.

• Floor Space Required: 72" x 40" area. This allows for the units to sit side-by-side with enough clearance for both doors to swing open 90 degrees for stocking.

• Power: Two standard 110/120V outlets.

  • One dedicated circuit is highly recommended for the Cooler (it pulls ~3.4 to 5.2 amps).

  • The Ambient cabinet plugs into a separate outlet but connects to the Cooler via a data cable.

• Connectivity: Single 4G/5G Cellular Gateway.
